Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 36010 | Spool Kit. TarpMaster Tarp Spool w/92" Housing - S/N: TM | 1 |
2 | 76700 | Bow Set. 98" Wide Top Tube w/ 98" Side Arms | 1 |
3 | 76710 | Bow Set. Tension Bow 98" Wide Top Tube w/ 98" Side Arms | 1 |
4 | 46440-60 | Pivot Set. 4 Spring w/ 60" Aluminum Pivot Tube | 1 |
5 | 76900 | Casting. Aluminum 30 Flat Elbow | 4 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 4644D-60 | Pivot. Drv-4 Spring Torsion AL - 60" Pivot Tube | 1 |
2 | 4644P-60 | Pivot. Pass-4 Spring Torsion AL - 60" Pivot Tube | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 76770 | Bow Tube. 98" AL Top Tube for Tarp Bow | 2 |
2 | 76810 | Tarp Flange for Bow Tube (Pair) | 2 |
3 | 76760 | Bow Tube. 98" Side Arm w/ 90 Corner | 2 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 76790 | Bow Tube. Tension Bow Top Tube w/ 2-Corners | 1 |
2 | 76810 | Tarp Flange for Bow Tube (Pair) | 1 |
3 | 76780 | Bow Tube. Tension Bow Side Arm w/ End Tab | 2 |
4 | 76830 | Bracket. AL Tension Bow Mount Bracket w/ hardware | 2 |

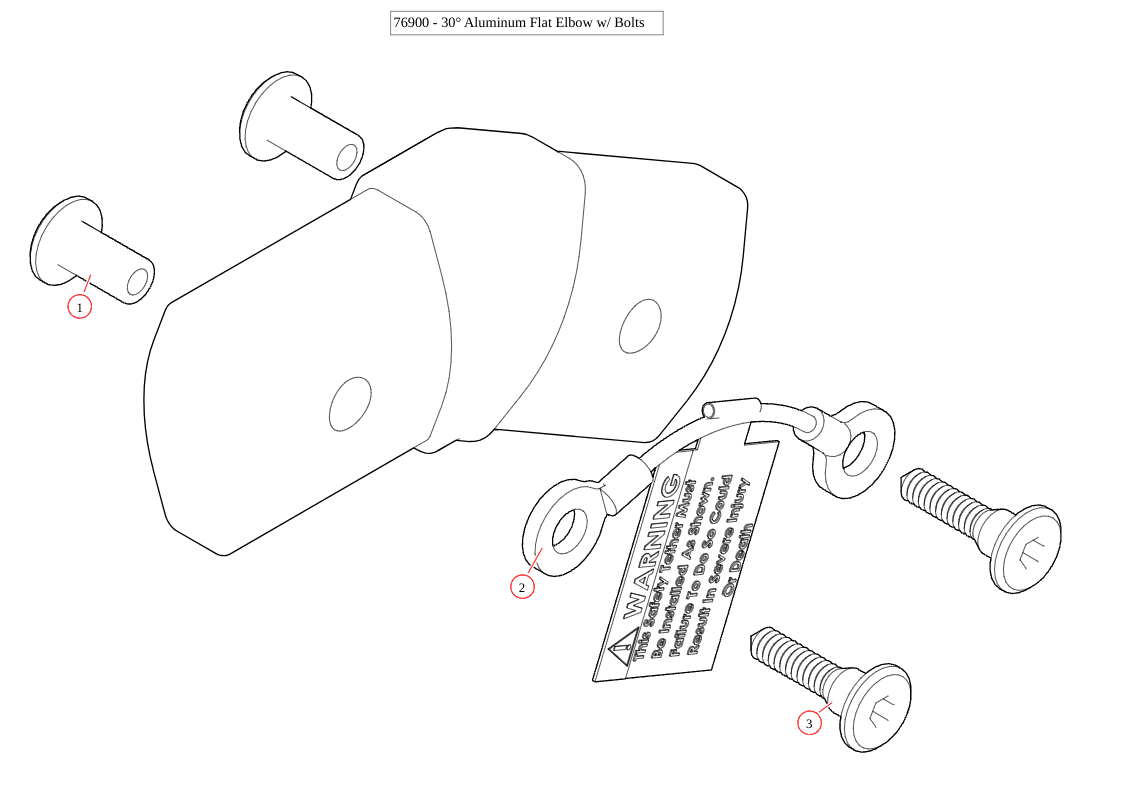

Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 18719 | Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners | 2 |
2 | 103766 | Tether. Cable with Install Label for offset Elbows | 1 |
3 | 18718 | Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners | 2 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 10310 | TarpMaster Motor 12V. 5 Year Warranty :S/N: | 1 |
2 | 36150 | Housing. Spool 92" Aluminum Replacement Housing | 1 |
3 | 31020 | Axle. 91" Pre-Threaded Aluminum Tarp w/Stub Shaft | 1 |
4 | 31050 | Bearing. 3/4" Flanged Axle Bearing with bolts | 1 |
5 | 101501 | Instructions. Front to Back Installation | 1 |
6 | 18414 | Washer. 5/8" Flat Zinc | 8 |
7 | 18635 | Nut. 5/8" Nylock Nut | 4 |
8 | 18710 | Bolt. 5/8" x 1 1/2" Bolt Zinc | 4 |
9 | 18260 | Bolt. 5/16" x 5/8" Button Head Bolt - Zinc Plated | 5 |
10 | 11411 | Wire. 16/3-Conductor - 15ft | 1 |
11 | 100743 | Wire. 8 ga. Dual Conductor(55') | 1 |
12 | 10914 | Electric Kit. With 10698 12V Relay and Rocker Switch | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 46140-60 | Pivot Tube. AL 4 Spring Arm Only 60" | 1 |
2 | 45340 | Pivot Pin. 4-Spring with 47000 snap ring | 1 |
3 | 18631 | Nut. 1/2" Nylock Nut | 2 |
4 | 18412 | Washer. 1/2" Flat Zinc | 2 |
5 | 18296 | Bolt. 1/2" x 1 1/2" Hex Head Bolt | 2 |
6 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 4 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 46140-60 | Pivot Tube. AL 4 Spring Arm Only 60" | 1 |
2 | 45340 | Pivot Pin. 4-Spring with 47000 snap ring | 1 |
3 | 18296 | Bolt. 1/2" x 1 1/2" Hex Head Bolt | 2 |
4 | 18412 | Washer. 1/2" Flat Zinc | 2 |
5 | 18631 | Nut. 1/2" Nylock Nut | 2 |
6 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 4 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 76770 | Bow Tube. 98" AL Top Tube for Tarp Bow | 1 |
2 | 76800 | Casting. Aluminum Corner - 90 Degree With Fasteners and Tether | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 18295 | Bolt. 1/2" x 1 1/2" Button Head Bolt | 1 |
2 | 18131 | Bolt. 1/2" x .620 x .650 steel spacer (to replace Ribbed Neck Carriage) with 18295 | 1 |
3 | 18631 | Nut. 1/2" Nylock Nut | 1 |
4 | 18293 | Screw. 1/2" x 3/8" Set Screw | 2 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 76770 | Bow Tube. 98" AL Top Tube for Tarp Bow | 1 |
2 | 76820 | Bow Tube. Tension Bow End Tab - Aluminum w/Fasteners | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 76800 | Casting. Aluminum Corner - 90 Degree With Fasteners and Tether | 2 |
2 | 76770 | Bow Tube. 98" AL Top Tube for Tarp Bow | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 10695 | Relay Kit. HD Mechanical Relay w/ 35 Amp Manual Reset Breaker & Terminal 12V | 1 |
2 | 19300 | Switch. Rocker (Open/Close) | 1 |
3 | 10390 | Bracket. Mounting for Rocker Switch | 1 |
4 | 101784 | Instructions. 10698 12 volt wiring Diagram | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 47040 | Bushing. 1 1/4 Poly T- Bushing for Pivot Pin | 1 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 47040 | Bushing. 1 1/4 Poly T- Bushing for Pivot Pin | 2 |
2 | 18520 | Pin. 1/2" x 3-1/2" Clevis | 1 |
3 | 18293 | Screw. 1/2" x 3/8" Set Screw | 2 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 103533 | Tether. Cable with Install Label for 90 degree corner | 1 |
2 | 18719 | Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners | 2 |
3 | 18718 | Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners | 2 |
Bom Id | Part # | Description | Qty |
---|---|---|---|
1 | 17918 | Breaker. 35A Outdoor Manual Reset Circuit Breaker | 1 |
2 | 101784 | Instructions. 10698 12 volt wiring Diagram | 1 |
