SD6000, 98" Integrated Housing, 6 Spring 144" UB Pivot, Wide Bow Set

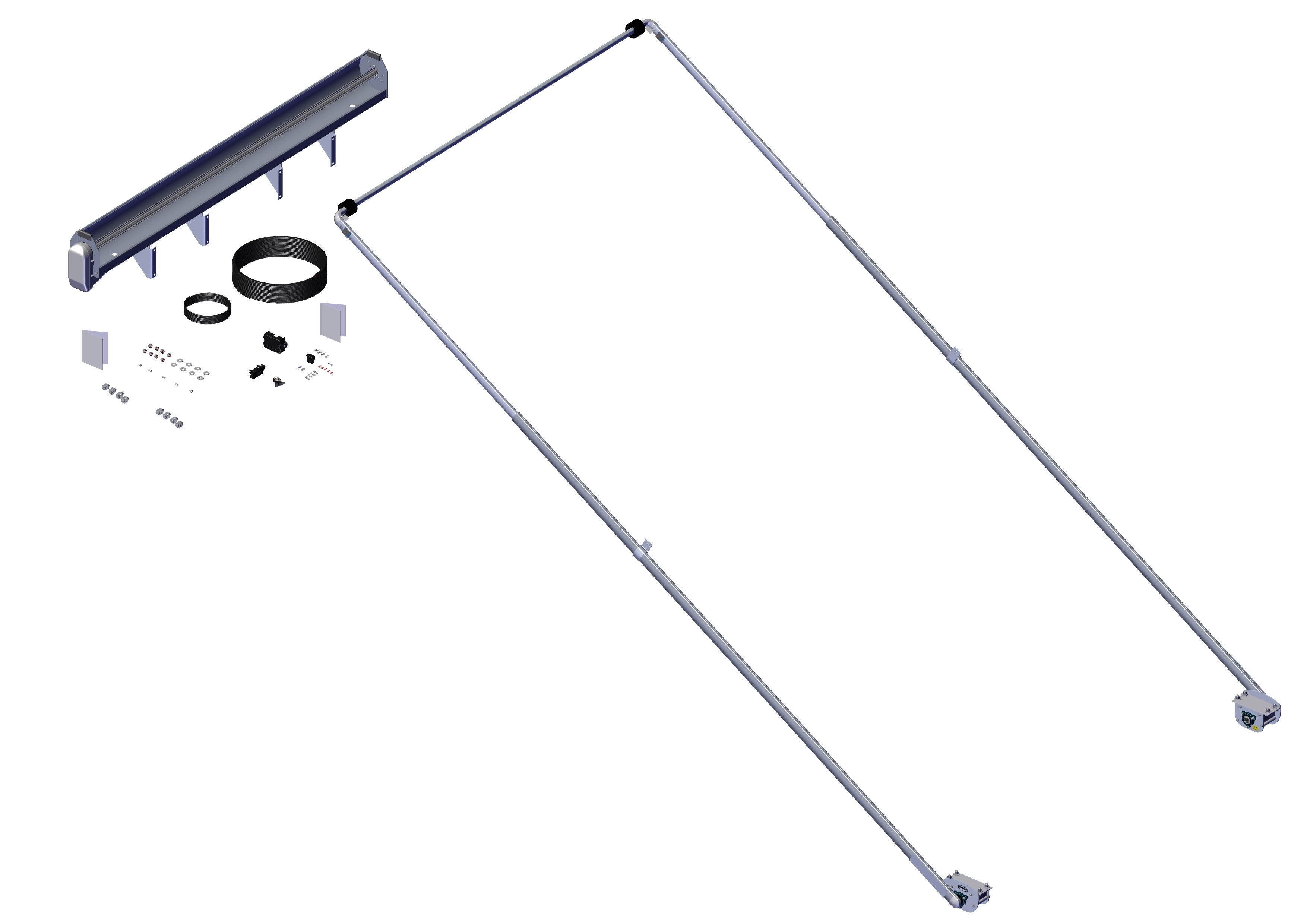

main product image

Product #: 66000

Bill of Materials List

66000

Bom IdPart #DescriptionQty
1 36072 Spool Kit. Super Duty Tarp Spool w/ 98" Integrated Housing - S/N: SD 1
2 76720 Bow Set. 103 1/2" Wide Top Tube and 103 1/2" Side Arms 1
3 46580 Pivot Set. 6 Spring Under-Body Mount w/ 144" Pivot Tubes (B1-46584 / B2-46585) 1
Bill of Materials List

36072

Bom IdPart #DescriptionQty
1 10122 Super Duty Motor 12V. 5 Year Warranty :S/N: 1
2 36164 Housing. Spool 98" Aluminum Integrated Housing 1
3 31030 Axle. 97" Pre-Threaded Tarp Axle w/Stub Shaft 1
4 31050 Bearing. 3/4" Flanged Axle Bearing with bolts 1
5 10914 Electric Kit. With 10698 12V Relay and Rocker Switch 1
6 36856 Bracket. Int Housing Gusset - Left (ea) 1
7 36858 Bracket. Int Housing Gusset - Right (ea) 1
8 18631 Nut. 1/2" Nylock Nut 8
9 18412 Washer. 1/2" Flat Zinc 16
10 18296 Bolt. 1/2" x 1 1/2" Hex Head Bolt 8
11 101501 Instructions. Front to Back Installation 1
12 11338 Wire. 6 ga. Dual Conductor - 85ft 1
13 11411 Wire. 16/3-Conductor - 15ft 1
Bill of Materials List

76720

Bom IdPart #DescriptionQty
1 76870 Bow Tube. 103 1/2" AL Wide Top Tube for Tarp Bow 3
2 76810 Tarp Flange for Bow Tube (Pair) 2
3 76800 Casting. Aluminum Corner - 90 Degree With Fasteners and Tether 2
Bill of Materials List

46580

Bom IdPart #DescriptionQty
1 76831 Bracket. Pivot Arm Tie Down 2
2 46260 Pivot Tube. 144" w/set screws(Each) 2
3 103295 Pivot. UB Assembly 6 Spr Driver 1
4 103296 Pivot. UB Assembly 6 Spr Passenger 1
Bill of Materials List

36164

Bom IdPart #DescriptionQty
1 18260 Bolt. 5/16" x 5/8" Button Head Bolt - Zinc Plated 5
2 18412 Washer. 1/2" Flat Zinc 6
3 18245 Bolt. T-Bolt 1/2-13NCx1.75 for GAB 6
4 18631 Nut. 1/2" Nylock Nut 6
5 36300 Bumper. Rubber Bumper for Tarp Spool (each) 2
6 36331 Bracket. Int Housing Aluminum Endcaps - Drivers Side 2
7 18120 Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd 6
Bill of Materials List

10914

Bom IdPart #DescriptionQty
1 10695 Relay Kit. HD Mechanical Relay w/ 35 Amp Manual Reset Breaker & Terminal 12V 1
2 19300 Switch. Rocker (Open/Close) 1
3 10390 Bracket. Mounting for Rocker Switch 1
4 101784 Instructions. 10698 12 volt wiring Diagram 1
Bill of Materials List

76800

Bom IdPart #DescriptionQty
1 103533 Tether. Cable with Install Label for 90 degree corner 1
2 18719 Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners 2
3 18718 Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners 2
Bill of Materials List

103296

Bom IdPart #DescriptionQty
1 46370 Pivot Pin. for 5 & 6-Spring Roller Bearing - Passenger 1
2 47800 Bearing. Carrier Underbody Flanged 2
3 18120 Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd 8
4 102349 Plate. Al Front for Ext Bolt Flange Mount UB Box 1
5 47230 Spring. Spiral Torsion Spring 1 1/4" 6
6 102509 Bracket. Ext Body with holes for 6 Spr UB Box 1
7 102259 Plate. Al Back for Ext Bolt Flange Mount UB Box 1
Bill of Materials List

103295

Bom IdPart #DescriptionQty
1 46360 Pivot Pin. for 5 & 6 Spring Roller Bearing - Drivers Side 1
2 47800 Bearing. Carrier Underbody Flanged 2
3 18120 Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd 8
4 102349 Plate. Al Front for Ext Bolt Flange Mount UB Box 1
5 47230 Spring. Spiral Torsion Spring 1 1/4" 6
6 102509 Bracket. Ext Body with holes for 6 Spr UB Box 1
7 102259 Plate. Al Back for Ext Bolt Flange Mount UB Box 1
Bill of Materials List

10695

Bom IdPart #DescriptionQty
1 17918 Breaker. 35A Outdoor Manual Reset Circuit Breaker 1
2 101784 Instructions. 10698 12 volt wiring Diagram 1
Bill of Materials List

47800

Bom IdPart #DescriptionQty
1 18628 Nut. Nylock nut 3/8" Jamb Nut 2
2 18242 Bolt. 3/8"-16 x 1 1/8" Button Head 2
